- 產品型號：98621290
- 頻率：172.162kHz
- 尺寸：5.0x3.2mm
- 產品介紹：Skyworks壓控晶振,515CAAM172162BAGR,Si515低功耗晶振，美國進口晶振，Skyworks思佳訊晶振，型號：Si515，編碼為：515CAAM172162BAGR，頻率為：172.162kHz，小體積...
-

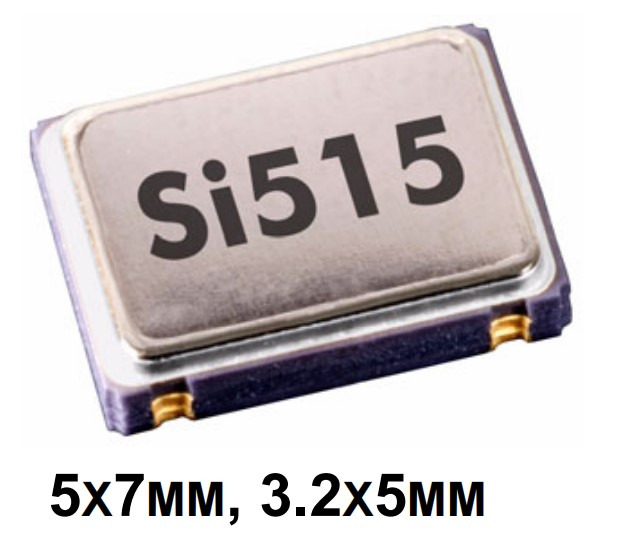

Skyworks壓控晶振,515CAAM172162BAGR,Si515低功耗晶振
航欄(16).jpg)
.jpg)

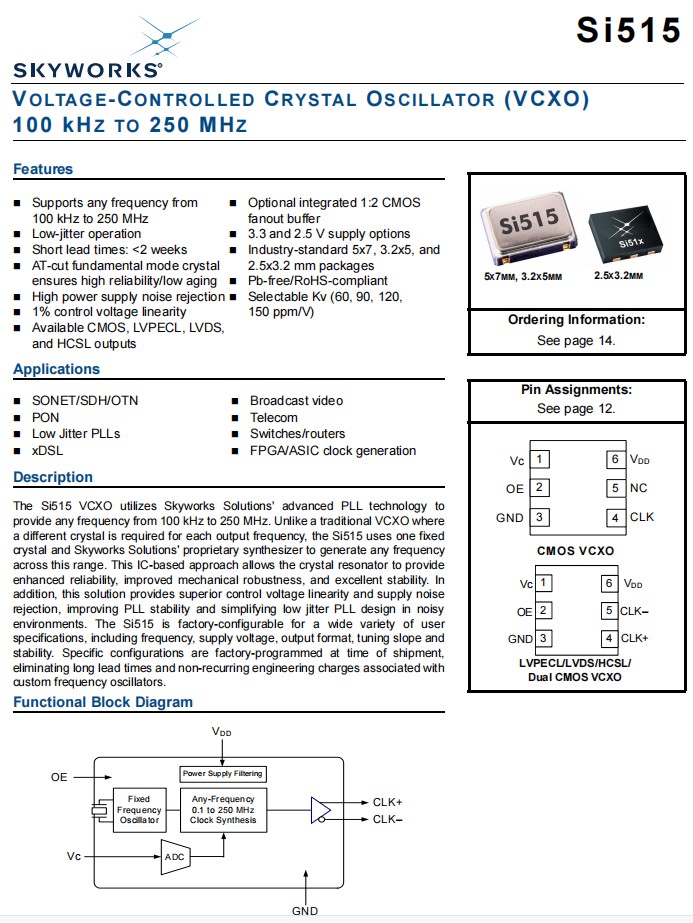

Skyworks壓控晶振,515CAAM172162BAGR,Si515低功耗晶振，美國進口晶振，Skyworks思佳訊晶振，型號：Si515，編碼為：515CAAM172162BAGR，頻率為：172.162kHz，小體積晶振尺寸：5.0x3.2mm封裝，CMOS輸出VCXO壓控晶振，壓控振蕩器，六腳貼片晶振，石英晶振，有源晶振，晶體振蕩器。具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電壓，低電平等特點。應用于：SONET/SDH/OTN，PON，低抖動PLLs，xDSL，廣播視頻，電信，交換機/路由器，F(xiàn)PGA/ASIC時鐘生成。
Si515 VCXO利用天空解決方案的先進PLL技術，提供從100 kHz到250 MHz的任何頻率。與傳統的VCXO不同，每個輸出頻率需要不同的晶體，Si515石英晶體振蕩器使用一個固定晶體和sky VCXO解決方案的專有合成器來產生這個范圍內的任何頻率。這種基于集成電路的方法允許晶體諧振器提供增強的可靠性，改進的機械魯棒性和優異的穩定性。此外，該解決方案提供了優越的控制電壓線性度和電源噪聲抑制，提高了PLL的穩定性，簡化了在有噪聲環境下的低抖動PLL設計。Si515系列可在工廠上配置各種用戶規格，包括頻率、電源電壓、輸出格式、調諧斜率和穩定性。特定的配置是在裝運時由工廠編程的，消除了與定制頻率振蕩器相關的長交貨時間和非重復的工程費用。
.jpg)
Skyworks壓控晶振,515CAAM172162BAGR,Si515低功耗晶振,參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||||
| Nominal Frequency | FO | CMOS, Dual CMOS | 172.162 | KHz | |||||||||||||||||||||
| FO | LVDS/LVPECL/HCSL | 0.1 | — | 250 | MHz | ||||||||||||||||||||
| Temperature Stability | ST | TA = –40 to +85 oC | –20 | — | +20 | ppm | |||||||||||||||||||
| Aging | A | Frequency drift over 10 year life | — | — | ±8.5 | ppm | |||||||||||||||||||
| Minimum Absolute Pull Range | APR | Ordering option | ±30, ±50,±80, ±100 | ppm | |||||||||||||||||||||
| Startup Time | TSU |
Minimum V DD to output fre- quency (FO) within specification |
— | — | 10 | ms | |||||||||||||||||||
| Disable Time | TD | FO > 10 MHz | — | — | 5 | µs | |||||||||||||||||||
| FO< 10 MHz | 40 | µs | |||||||||||||||||||||||
| Enable Time | TE | FO > 10 MHz | — | — | 20 | µs | |||||||||||||||||||
| FO< 10 MHz | 60 | µs | |||||||||||||||||||||||
.jpg)

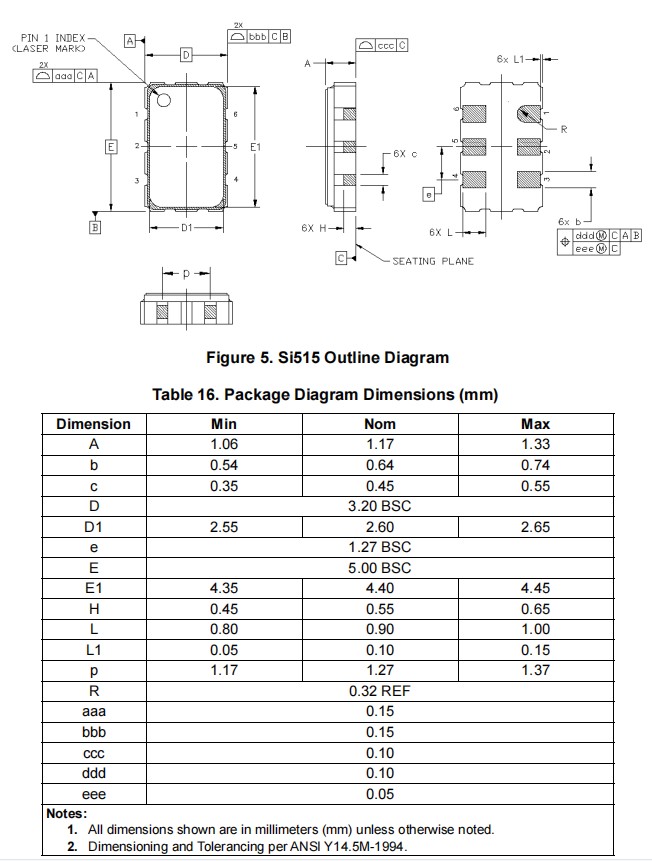

Skyworks壓控晶振,515CAAM172162BAGR,Si515低功耗晶振,尺寸圖
Skyworks壓控晶振,515CAAM172162BAGR,Si515低功耗晶振
產品特點：
支持從100 kHz到250 MHz的任何頻率
低抖動操作
交付周期短：<2周
AT切割基模晶體確保高可靠性/低老化
高電源噪聲抑制
1%控制電壓線性
可用的CMOS、LVPECL、LVDS和HCSL輸出
可選集成1:2 CMOS扇出緩沖器
3.3和2.5 V電源選項
行業標準5x7、3.2x5mm和2.5x3.2mm封裝，有源晶振
無鉛/符合RoHS
可選Kv（60、90、120、150 ppm/V）
Si515支持多種選項，包括頻率、穩定性、調諧斜率、輸出格式和VDD。特定的設備配置在裝運時被編程到Si515中。將使用下面所示的零件號配置圖來指定配置。Skyworks解決方案提供了一個基于web瀏覽器的部件號配置實用程序，以簡化這個過程。
| 編碼 | 進口晶振 | 系列 | 頻率 | 輸出 | 電壓 |
| 515CAAM100000AAGR | Skyworks晶振 | Si515 | 100 kHz | CMOS | 3.3V |
| 515CAB32M7680AAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V |
| 515CBA4M09600AAGR | Skyworks晶振 | Si515 | 4.096 MHz | CMOS | 3.3V |
| 515CDA8M00000AAGR | Skyworks晶振 | Si515 | 8 MHz | CMOS | 3.3V |
| 515GCA10M0000AAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 2.5V |
| 515CAA10M0000BAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 3.3V |
| 515CAA22M5792BAGR | Skyworks晶振 | Si515 | 22.5792 MHz | CMOS | 3.3V |
| 515CAA24M5760BAGR | Skyworks晶振 | Si515 | 24.576 MHz | CMOS | 3.3V |
| 515CAA27M0000BAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V |
| 515CAA4M09600BAGR | Skyworks晶振 | Si515 | 4.096 MHz | CMOS | 3.3V |
| 515CAA7M37472BAGR | Skyworks晶振 | Si515 | 7.37472 MHz | CMOS | 3.3V |
| 515CAA80M0000BAGR | Skyworks晶振 | Si515 | 80 MHz | CMOS | 3.3V |
| 515CAAM172162BAGR | Skyworks晶振 | Si515 | 172.162 kHz | CMOS | 3.3V |
| 515CAB27M0000BAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V |
| 515CAB4M09600BAGR | Skyworks晶振 | Si515 | 4.096 MHz | CMOS | 3.3V |
| 515CAB5M00000BAGR | Skyworks晶振 | Si515 | 5 MHz | CMOS | 3.3V |
| 515CBA24M0000BAGR | Skyworks晶振 | Si515 | 24 MHz | CMOS | 3.3V |
| 515CBA36M8640BAGR | Skyworks晶振 | Si515 | 36.864 MHz | CMOS | 3.3V |
| 515CBA38M4000BAGR | Skyworks晶振 | Si515 | 38.4 MHz | CMOS | 3.3V |
| 515CBA80M0000BAGR | Skyworks晶振 | Si515 | 80 MHz | CMOS | 3.3V |
| 515CBB14M3182BAGR | Skyworks晶振 | Si515 | 14.3182 MHz | CMOS | 3.3V |
| 515CBB27M0000BAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V |
| 515CBB6M00000BAGR | Skyworks晶振 | Si515 | 6 MHz | CMOS | 3.3V |
| 515CCA10M0000BAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 3.3V |
| 515CCA122M880BAGR | Skyworks晶振 | Si515 | 122.88 MHz | CMOS | 3.3V |
| 515CCA40M0000BAGR | Skyworks晶振 | Si515 | 40 MHz | CMOS | 3.3V |
| 515CCA61M4400BAGR | Skyworks晶振 | Si515 | 61.44 MHz | CMOS | 3.3V |
| 515CCA64M0000BAGR | Skyworks晶振 | Si515 | 64 MHz | CMOS | 3.3V |
| 515CCB122M880BAGR | Skyworks晶振 | Si515 | 122.88 MHz | CMOS | 3.3V |
| 515CCB14M3182BAGR | Skyworks晶振 | Si515 | 14.3182 MHz | CMOS | 3.3V |
| 515CCB16M3840BAGR | Skyworks晶振 | Si515 | 16.384 MHz | CMOS | 3.3V |
| 515CCB25M0000BAGR | Skyworks晶振 | Si515 | 25 MHz | CMOS | 3.3V |
| 515CDA10M0000BAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 3.3V |
| 515CDA27M0000BAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V |
| 515CDA32M7680BAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V |
| 515CDAM134200BAGR | Skyworks晶振 | Si515 | 1.342 kHz | CMOS | 3.3V |
| 515CDB25M0000BAGR | Skyworks晶振 | Si515 | 25 MHz | CMOS | 3.3V |
| 515CDB6M00000BAGR | Skyworks晶振 | Si515 | 6 MHz | CMOS | 3.3V |
| 515GAA25M0000BAGR | 石英晶振 | Si515 | 25 MHz | CMOS | 2.5V |
| 515MDA17M1776BAGR | Skyworks晶振 | Si515 | 17.1776 MHz | CMOS | 3.3V |
| 515NDAM134200BAGR | Skyworks晶振 | Si515 | 134.2 kHz | CMOS | 3.3V |
| 515CAA12M2870BAGR | Skyworks晶振 | Si515 | 12.287 MHz | CMOS | 3.3V |
| 515CAA12M2880BAGR | Skyworks晶振 | Si515 | 12.287 MHz | CMOS | 3.3V |
| 515CAA98M3040BAGR | Skyworks晶振 | Si515 | 98.3 MHz | CMOS | 3.3V |
| 515CCA50M0000BAGR | Skyworks晶振 | Si515 | 50 MHz | CMOS | 3.3V |
| 515CAA000282CAGR | Skyworks晶振 | Si515 | 14.31818 MHz | CMOS | 3.3V |
| 515CDA51M2000BAGR | Skyworks晶振 | Si515 | 51.2 MHz | CMOS | 3.3V |
| 515CAA16M7770CAGR | Skyworks晶振 | Si515 | 16.777 MHz | CMOS | 3.3V |
| 515GAA54M0000CAGR | Skyworks晶振 | Si515 | 54 MHz | CMOS | 2.5V |
| 515CAA16M0000BAGR | Skyworks晶振 | Si515 | 16 MHz | CMOS | 3.3V |
| 515CBA32M7680CAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V |
| 515CAA12M2880CAGR | Skyworks晶振 | Si515 | 12.288 MHz | CMOS | 3.3V |
| 515CBA27M0000CAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V |
| 515GAA54M0000BAGR | Skyworks晶振 | Si515 | 54 MHz | CMOS | 2.5V |
| 515GCA27M0000CAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 2.5V |
| 515GCA10M0000CAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 2.5V |
| 515CAA004711CAGR | Skyworks晶振 | Si515 | 16.777215 MHz | CMOS | 3.3V |
| 515CBA96M0000BAGR | Skyworks晶振 | Si515 | 96 MHz | CMOS | 3.3V |
| 515CCA12M8000CAGR | Skyworks晶振 | Si515 | 12.8 MHz | CMOS | 3.3V |
| 515CCA125M000CAGR | Skyworks晶振 | Si515 | 125 MHz | CMOS | 3.3V |
| 515CAA27M0000CAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V |
| 515CCA2M04800CAGR | Skyworks晶振 | Si515 | 2.048 MHz | CMOS | 3.3V |
| 515CAA49M1520BAGR | Skyworks晶振 | Si515 | 49.152 MHz | CMOS | 3.3V |
| 515GAA32M7680CAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 2.5V |
| 515CCA65M0000CAGR | Skyworks晶振 | Si515 | 65 MHz | CMOS | 3.3V |
| 515CCAM100000CAGR | Skyworks晶振 | Si515 | 100 kHz | CMOS | 3.3V |
| 515CCA8M00000CAGR | Skyworks晶振 | Si515 | 8 MHz | CMOS | 3.3V |
| 515ABA10M0000BAGR | Skyworks晶振 | Si515 | 10 MHz | LVPECL | 3.3V |
| 515BBA10M0000BAGR | Skyworks晶振 | Si515 | 10 MHz | LVDS | 3.3V |
| 515MCB6M78000BAGR | Skyworks晶振 | Si515 | 6.78 MHz | CMOS | 3.3V |
| 515CAAM100000AAG | Skyworks晶振 | Si515 | 100 kHz | CMOS | 3.3V |
| 515CAB32M7680AAG | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V |
| 515CBA4M09600AAG | Skyworks晶振 | Si515 | 4.096 MHz | CMOS | 3.3V |
| 515CDA8M00000AAG | Skyworks晶振 | Si515 | 8 MHz | CMOS | 3.3V |
| 515GCA10M0000AAG | Skyworks晶振 | Si515 | 10 MHz | CMOS | 2.5V |
| 515CAA150M000BAGR | Skyworks晶振 | Si515 | 150 MHz | CMOS | 3.3V |
| 515CCA162M025BAGR | Skyworks晶振 | Si515 | 162.025 MHz | CMOS | 3.3V |
| 515CAA144M300BAGR | Skyworks晶振 | Si515 | 144.3 MHz | CMOS | 3.3V |
| 515CAA000256AAGR | Skyworks晶振 | Si515 | 256 MHz | CMOS | 3.3V |
| 515CAA10M0000AAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 3.3V |
| 515CAA10M2400AAGR | Skyworks晶振 | Si515 | 10.24 MHz | CMOS | 3.3V |
| 515CAA125M000AAGR | Skyworks晶振 | Si515 | 125 MHz | CMOS | 3.3V |
| 515CAA24M5760AAGR | Skyworks晶振 | Si515 | 24.576 MHz | CMOS | 3.3V |
| 515CAA25M0000AAGR | Skyworks晶振 | Si515 | 25 MHz | CMOS | 3.3V |
| 515CAA27M0000AAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V |
| 515CAA30M0000AAGR | Skyworks晶振 | Si515 | 30 MHz | CMOS | 3.3V |
| 515CAA32M7680AAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V |
| 515CAA40M0000AAGR | Skyworks晶振 | Si515 | 40 MHz | CMOS | 3.3V |
| 515CAA44M7360AAGR | Skyworks晶振 | Si515 | 44.736 MHz | CMOS | 3.3V |
| 515CAA70M6560AAGR | Skyworks晶振 | Si515 | 70.656 MHz | CMOS | 3.3V |
| 515CAA74M2500AAGR | Skyworks晶振 | Si515 | 74.25 MHz | CMOS | 3.3V |
